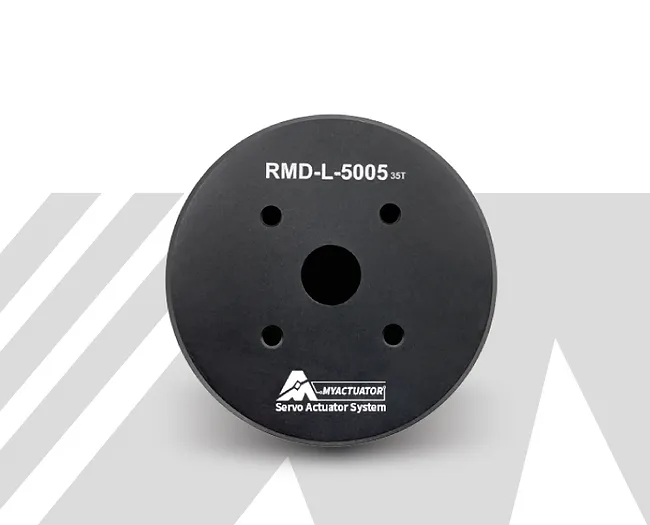

RMD-L-5005 - RMD L Series, 0.42 Nm Peak Torque

$100.00

RMD-L-5005

Servo Rotary Actuators with direct drive.
RMD L Series, 0.42 Nm Peak Torque

Designed for robotic arm applications demanding high precision and resolution.

CAN Bus communication.

Quantity:

Add To Cart

RMD-L-5005

Servo Rotary Actuators with direct drive.
RMD L Series, 0.42 Nm Peak Torque

Designed for robotic arm applications demanding high precision and resolution.

CAN Bus communication.

RMD-L-5005

Servo Rotary Actuators with direct drive.
RMD L Series, 0.42 Nm Peak Torque

Designed for robotic arm applications demanding high precision and resolution.

CAN Bus communication.

Additional Product Details


    Part Number
    L-5010

    Gear Reduction Type
    -
    Direct Drive

    Rated Voltage
    V
    16

    Rated Current
    A
    1.65

    Rated Torque
    Nm
    0.26

    Rated Speed
    RPM
    600

    Max Speed
    RPM
    1015

    Peak Torque
    Nm
    0.65

    Peak Current
    A
    4.8

    Phase Resistance
    Ohm
    3.2

    Connection Type
    -
    Y

    Phase Inductance
    mH
    1.2

    Speed Constant
    RPM/V
    63

    Torque Constant
    Nm/A
    0.16

    Rotor Inertia
    gcm²
    202

    Number of Pole Pairs
    -
    14

    Motor Weight
    g
    135

    Working Temperature
    C
    -20 ~ 80

    Max Demagnetize Temperature
    C
    120

    Control Precision
    deg
    0.001

    Drive
    -
    MC100

    Input Voltage
    V
    8-24

    Current
    A
    Nominal: 5A; Instantaneous: 8A

    Rated Power
    W
    100

    Encoder
    -
    18-bit Magnetic Encoder

    Communication Method and Baud Rate
    -
    CAN BUS :1M ; RS485: 115200/500k/1M/2.5M

    Control Mode
    -
    Torque loop (current loop) / speed loop / position loop

    S-Curve
    -
    Yes
