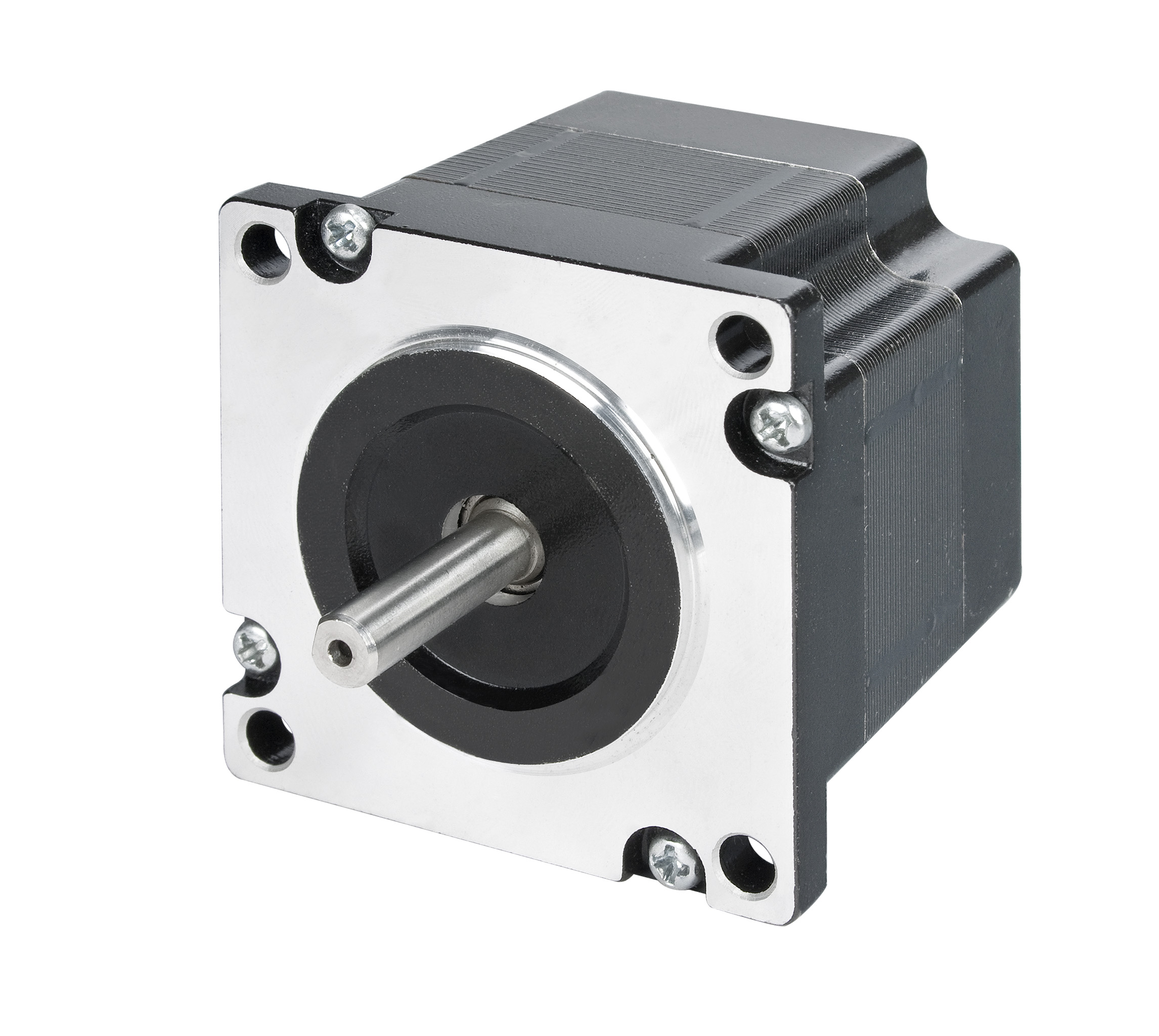

NEMA SIZE 34 (86 mm)
hybrid stepper motor



Specifications Please consult your authorized sales representative for custom specifications.

Motor Holding Torque (Nm) Current (A) Resistance (Ω) Step Angle (o) Rotor Inertia (gfcm2) Weight (kg) Motor Length (mm) Inductance (mH)
34H2060-300-4A 3.0 3.0 1.0 1.8 1100 1.6 60.5 6.0
34H2060-450-4A 3.0 4.5 0.5 1.8 1100 1.6 60.5 2.7
34H2060-600-4A 3.0 6.0 0.3 1.8 1100 1.6 60.5 1.6
34H2068-300-4A 3.6 3.0 1.2 1.8 1400 1.8 66.5 8.5
34H2068-450-4A 3.6 4.5 0.5 1.8 1400 1.8 66.5 4.0
34H2068-600-4A 3.6 6.0 0.3 1.8 1400 1.8 66.5 2.2
34H2080-300-4A 4.5 3.0 1.3 1.8 1800 2.1 75 12.0
34H2080-450-4A 4.5 4.5 0.6 1.8 1800 2.1 75 6.0
34H2080-600-4A 4.5 6.0 0.3 1.8 1800 2.1 75 3.4
34H2098-300-4A 7.2 3.0 1.7 1.8 2800 2.9 96.5 18.0
34H2098-450-4A 7.2 4.5 0.8 1.8 2800 2.9 96.5 8.3
34H2098-600-4A 7.2 6.0 0.5 1.8 2800 2.9 96.5 4.3
34H2120-300-4A 8.5 3.0 2.1 1.8 3600 3.6 113.5 25.7
34H2120-450-4A 8.5 4.5 0.9 1.8 3600 3.6 113.5 11.8
34H2120-600-4A 8.5 6.0 0.5 1.8 3600 3.6 113.5 6.5
34H2128-450-4A 10.5 4.5 1.0 1.8 4200 4.1 126 12.0
34H2128-600-4A 10.5 6.0 0.6 1.8 4200 4.1 126 6.4
34H2128-750-4A 10.5 7.5 0.4 1.8 4200 4.1 126 4.6
34H2160-450-4A 12.0 4.5 1.3 1.8 5400 5.0 151.5 16.5
34H2160-600-4A 12 6.0 0.7 1.8 5400 5.0 151.5 9.2
34H2160-750-4A 12 7.5 0.5 1.8 5400 5.0 151.5 6.3

Drawing

NEMA 34 Rotary Stepper Motor Drawing

Speed Torque Curves
