NEMA SIZE 11 (28 mm)

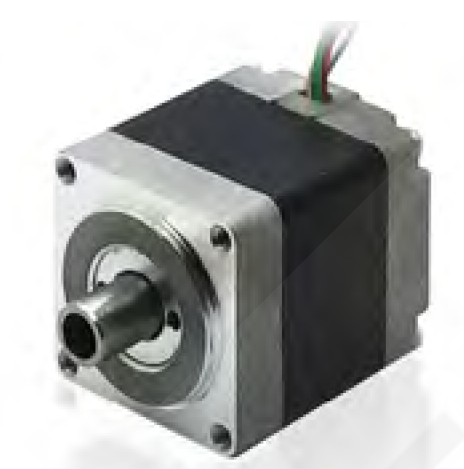

Hollow Shaft Motor


Motor Rated Voltage (V) Current (A) Resistance (Ω) Inductance (mH) Holding Torque (Nm) Detent Torque (Nm) Motor Length (mm)
11H2033 2.1 1.0 2.1 1.5 0.053 0.004 33.5
11H2045 4.1 1.0 4.1 4.0 0.117 0.004 45

Drawing

NEMA 11 Hollow Shaft Motor Drawing

Speed Torque Curve

NEMA 11 Hollow Shaft Speed Torque Curve
