NEMA 24 - Speed Torque Curves

NEMA 24
Written By Guest User

All speed / torque curves below are generated using 8:1 microstepping setting on driver

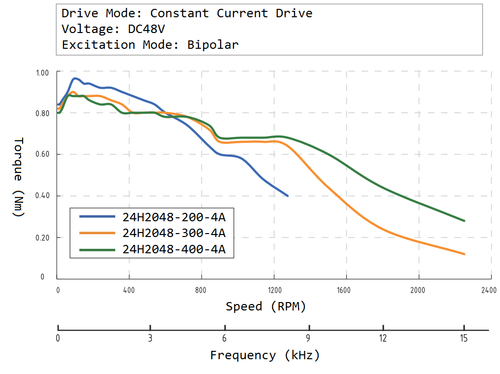

24H2048 Speed Torque Curve

24H2056 Speed Torque Curve

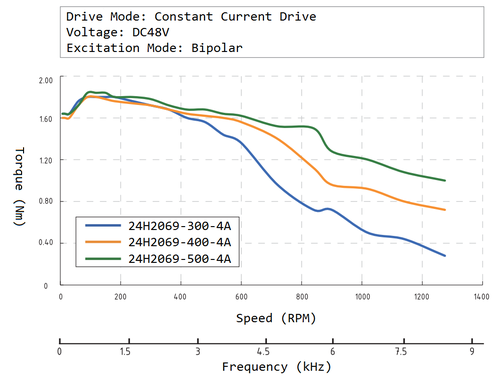

24H2069 Speed Torque Curve

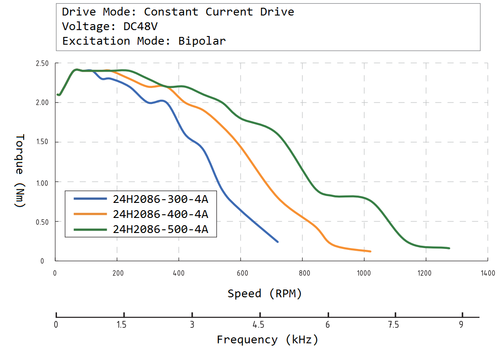

24H2086 Speed Torque Curve
