NEMA 23 - Speed Torque Curves
All speed / torque curves below are generated using 8:1 microstepping setting on driver
1.8° STEP ANGLE

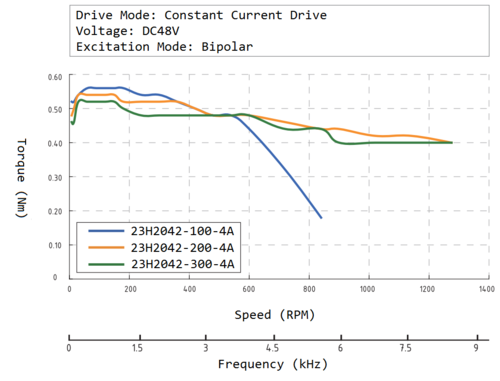

23H2042 Speed Torque Curve

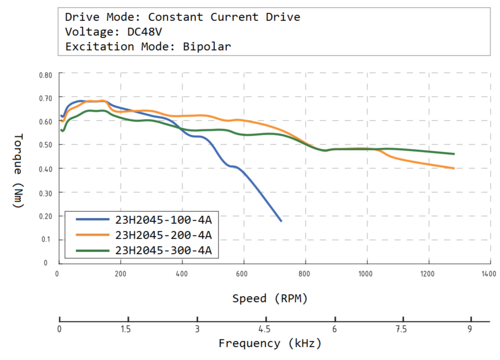

23H2045 Speed Torque Curve

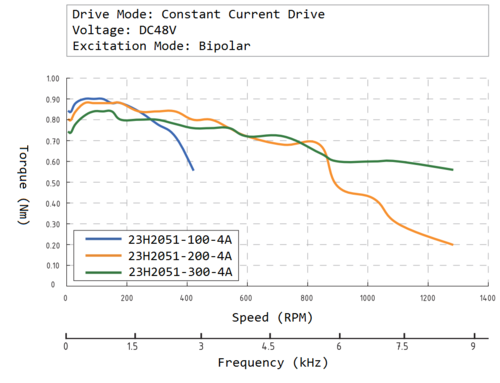

23H2051 Speed Torque Curve

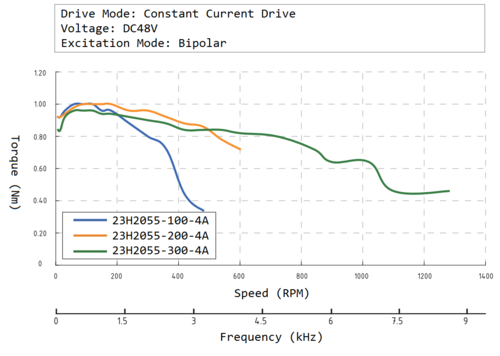

23H2055 Speed Torque Curve

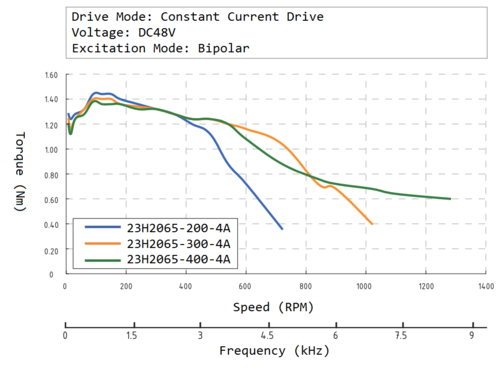

23H2065 Speed Torque Curve

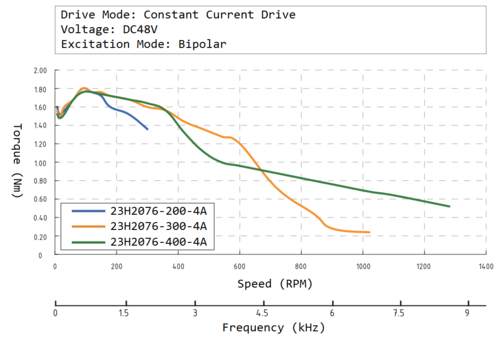

23H2076 Speed Torque Curve
0.9° STEP ANGLE

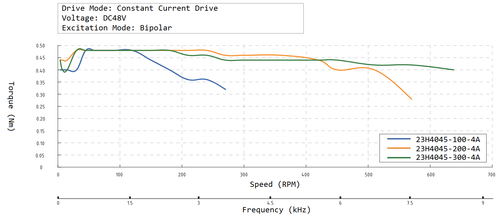

23H4045 Speed Torque Curve

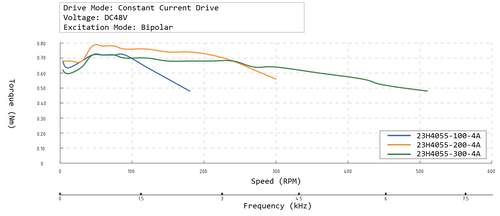

23H4055 Speed Torque Curve

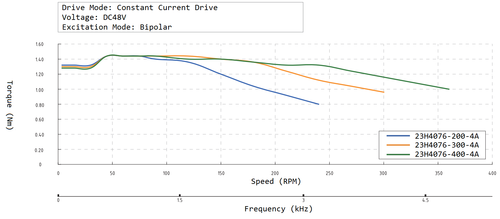

23H4076 Speed Torque Curve
