25 mm PM Stepper Linear Actuator

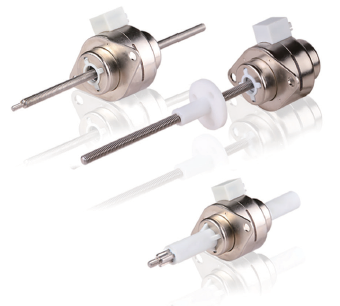

The 25 mm PM stepper linear actuator is a compact can stack linear actuator platform available in External, Non-Captive, and Kaptive configurations.
Designed for space-constrained OEM applications, this permanent magnet linear actuator supports multiple screw diameters, lead screw options, 7.5° and 15° step angles, Teflon coating, and length customization.
Motor Characteristics
Swipe left or right to view the full table.
| Specification | 7.5° / 5V | 7.5° / 12V | 15° / 5V | 15° / 12V |
|---|---|---|---|---|
| Polarity | Bi-Polar | |||
| Linear Actuator Type | External, Non-Captive, Kaptive | |||
| Step Angle | 7.5° | 15° | ||
| Winding | 5V | 12V | 5V | 12V |
| Phase Current | 370mA | 160mA | 370mA | 160mA |
| Phase Resistance | 13.5Ω | 70Ω | 13.5Ω | 70Ω |
| Phase Inductance | 12.5mH | 65mH | 9.5mH | 47mH |
| Power Consumption | 3.85W | |||
| Rotor Inertia | 1.08gcm2 | |||
| Insulation Class | B | |||
| Insulation Resistance | 100MΩ | |||
| Mass | 50g | |||
Available Lead Screw and Travel per Step
Swipe left or right to view the full table.
| Step Angle | Screw Dia. (mm) | Screw Lead | Travel per Step | Screw Lead Code | ||
|---|---|---|---|---|---|---|
| mm | inch | mm | inch | |||
| 7.5° | Φ3.5 | 0.3 | 0.0118 | 0.00625 | 0.00025 | AF |
| 0.6096 | 0.024 | 0.0127 | 0.0005 | AA | ||
| 1.0 | 0.03937 | 0.02083 | 0.00082 | AB | ||
| 1.2192 | 0.048 | 0.0254 | 0.001 | B | ||
| 2.0 | 0.07874 | 0.04167 | 0.00164 | G | ||
| 2.4384 | 0.096 | 0.0508 | 0.002 | J | ||
| 4.0 | 0.15748 | 0.0833 | 0.00328 | M | ||
| Φ4.77 | 0.635 | 0.025 | 0.0132 | 0.00052 | A | |
| 1.27 | 0.05 | 0.0265 | 0.00104 | D | ||
| 2.54 | 0.1 | 0.0529 | 0.00208 | K | ||
| 15° | Φ3.5 | 0.3 | 0.0118 | 0.0125 | 0.00049 | AF |
| 0.6096 | 0.024 | 0.0254 | 0.001 | AA | ||
| 1.0 | 0.03937 | 0.0417 | 0.00164 | AB | ||
| 1.2192 | 0.048 | 0.0508 | 0.002 | B | ||
| 2.0 | 0.07874 | 0.0833 | 0.00328 | G | ||
| 2.4384 | 0.096 | 0.1016 | 0.004 | J | ||
| 4.0 | 0.15748 | 0.1667 | 0.00656 | M | ||
| Φ4.77 | 0.635 | 0.025 | 0.0265 | 0.00104 | A | |
| 1.27 | 0.05 | 0.0529 | 0.00208 | D | ||
| 2.54 | 0.1 | 0.1058 | 0.00417 | K | ||
Dimensional Drawings
Swipe left or right to view the full table.
| Stroke X (mm) | Front Extension A | Total Extension B | Body Length C (Max) |
|---|---|---|---|
| 13 | 10.5±0.25 | 36.5 | 27.5 |
| 18 | 15.5±0.25 | 46.5 | 32.5 |
| 25 | 22.5±0.25 | 60.5 | 39.5 |
| 31 | 28.5±0.25 | 72.5 | 45.5 |
Speed Thrust Curves
Available Options

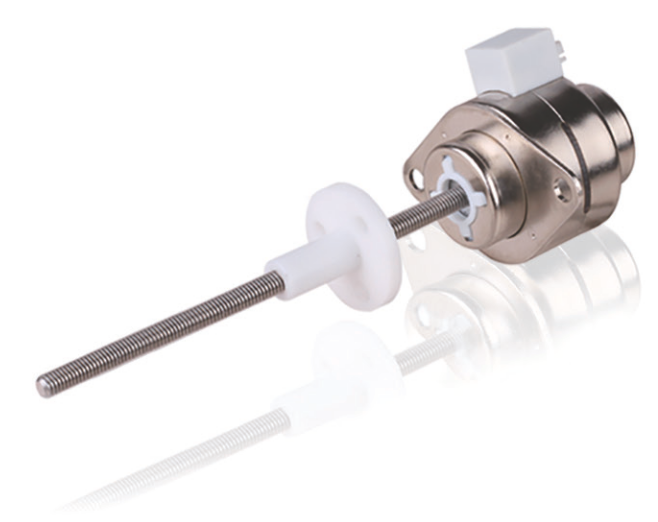

External Version
Supports applications where the nut translates along the lead screw and the screw remains fixed to the motor shaft.
Non-Captive Version
Supports compact linear motion designs where the screw travels through the motor and external guidance is provided.

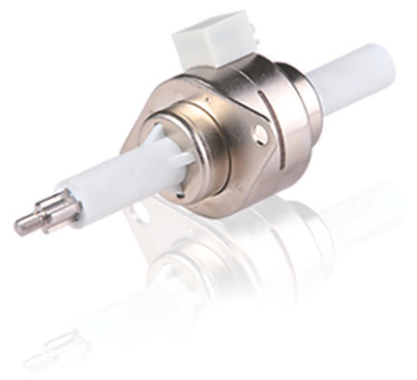

Kaptive Version
Provides a guided short-stroke output configuration for simplified integration into compact mechanisms.
Teflon Coating
Teflon coated lead screw options are available when the application needs a greaseless screw and nut combination.
Customization Options
Screw End Machining
Customize screw ends to match coupling, mounting, retention, or driven load requirements.
Lead Screw Length
Adjust screw length to meet travel, packaging, and mechanical interface requirements.
Winding Review
Select 5V or 12V winding options based on voltage, current, speed, and available drive electronics.
Application Review
Work with DINGS’ Motion USA to review thrust, speed, duty cycle, stroke, lead code, and mounting needs.
Downloads
Need help selecting or customizing a 25 mm PM linear actuator?
DINGS’ Motion USA can help evaluate actuator type, lead screw code, travel per step, thrust, speed, stroke, voltage, and custom mechanical requirements for your application.
