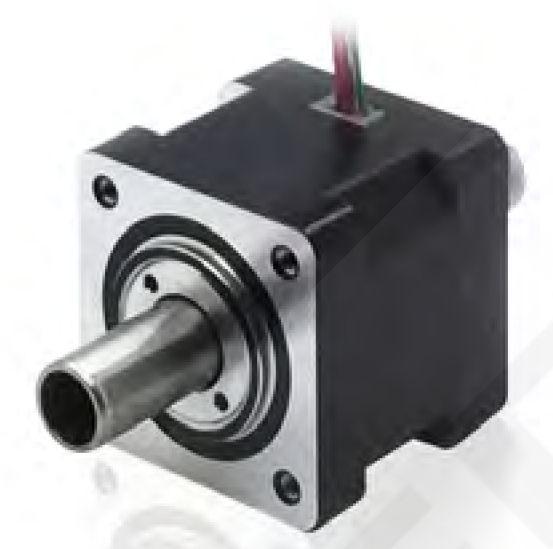

NEMA Size 14 (35 mm)
Hollow Shaft Motor


Motor Rated Voltage (V) Current (A) Resistance (Ω) Inductance (mH) Holding Torque (Nm) Detent Torque (Nm) Motor Length (mm)
14H2033 3.5 1.0 3.5 3.6 0.19 0.008 33.6
14H2045 6 1.0 6 7.2 0.36 0.013 45.6

Drawing

NEMA 14 Hollow Shaft Motor Drawing

Speed Torque Curve

NEMA 14 Hollow Shaft Speed Torque Curve
