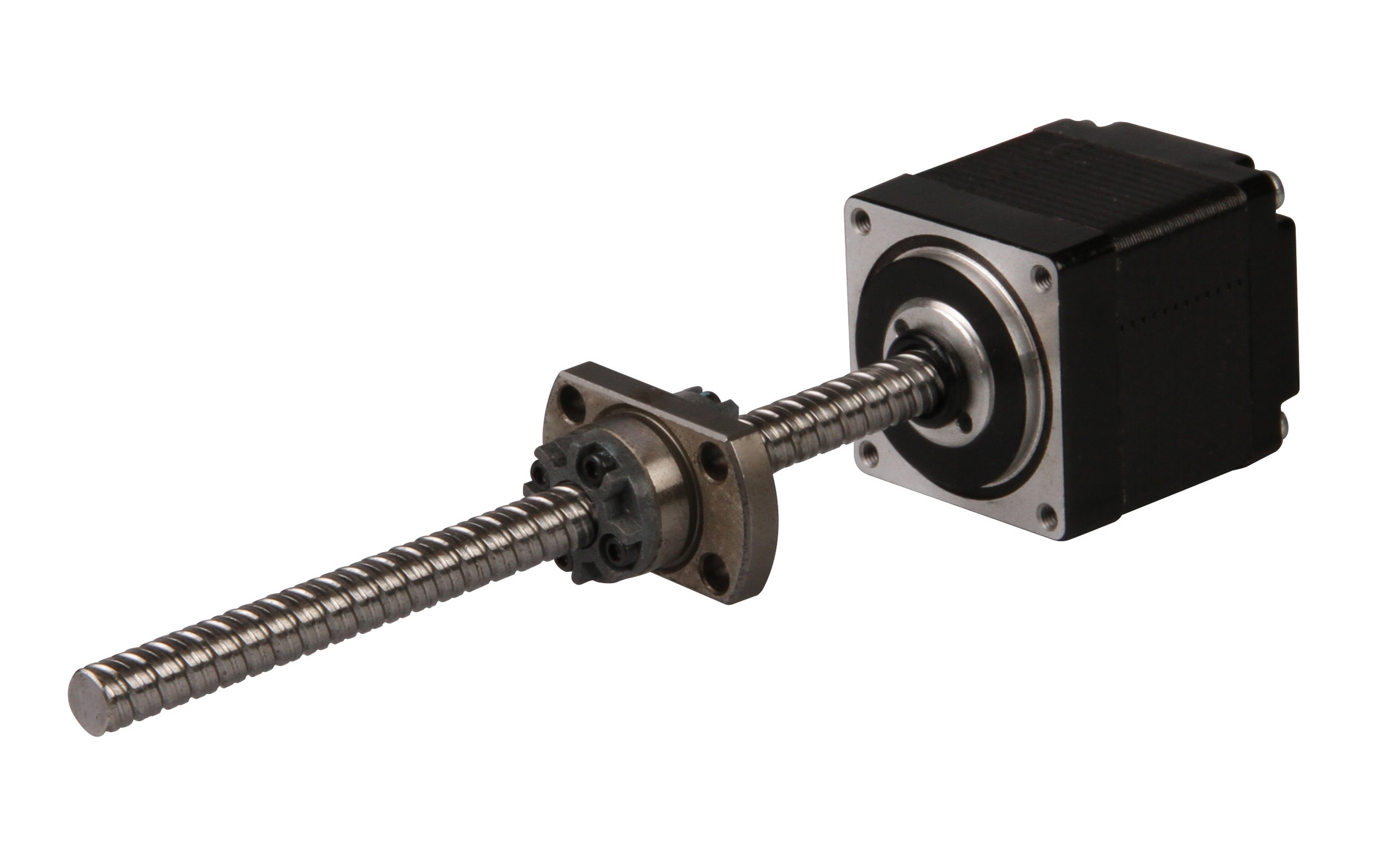

NEMA 11 (28mm)
HYBRID STEPPER MOTOR
BALL SCREW ACTUATOR
Motor Characteristics
| Motor | Voltage (V) |
Current (A) |
Resistance (Ω) |
Inductance (mH) |
Lead Wire No. | Motor Length (mm) |
|---|---|---|---|---|---|---|
| 11E2110 | 2.1 | 1.0 | 2.1 | 1.5 | 4 | 33.5 |
| 11E2209 | 3.9 | 0.95 | 4.1 | 4.0 | 4 | 45 |
Ball Screw Specifications
| Ball Screw Type | 0601 | 0602 | 0606 | 0610 | 0504 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ball Size | ∅0.8 | ∅0.8 | ∅0.8 | ∅1.2 | ∅0.8 | ||||||||
| Number of Thread | 1 | 1 | 2 | 2 | 1 | ||||||||
| Thread Direction | Right | ||||||||||||
| Shaft Root Diameter | ∅5.3 | ∅5.1 | ∅5.2 | ∅5.0 | ∅4.3 | ||||||||
| Number of Circuit | 3.7x1 | 2.7x1 | 1.6x2 | 1.2x2 | 2.7x1 | ||||||||
| Shaft, Nut Material | SCM415H | ||||||||||||
| Surface Hardness | HRC58-62 | ||||||||||||
| Anti-Rust Treatment | Anti-rust Oil | ||||||||||||
| Grade | C7 | ||||||||||||
| Nut Size | A | B | C | D | H | W | X | E | Position Accuracy | Total Run Out | Axial Play | Dynamic Load (N) | Static Load (N) |
| 0601 | 26 | 4 | 17 | 13 | 16 | 20 | 3.4 | ±0.05 | 0.12 | 0.02 | 680 | 1200 | |
| 0602 | 28 | 4 | 17 | 15 | 19 | 22 | 3.4 | ±0.05 | 0.12 | 0.02 | 750 | 1450 | |
| 0606 | 27 | 4 | 17 | 14 | 16 | 21 | 3.4 | 5 | ±0.05 | 0.12 | 0.02 | 870 | 1600 |
| 0610 | 27 | 4 | 23 | 14 | 16 | 21 | 3.4 | 7.5 | ±0.05 | 0.12 | 0.02 | 950 | 1650 |
| 0504 | 24 | 4 | 22 | 12 | 16 | 18 | 3.4 | ±0.05 | 0.12 | 0.02 | 470 | 720 | |
Drawing
NEMA 11 Ball Screw Actuator Drawing
Speed Thrust Curves
NEMA 11 Single Stack Ball Screw Actuator Speed Thrust Curve
NEMA 11 Double Stack Ball Screw Actuator Speed Thrust Curve
